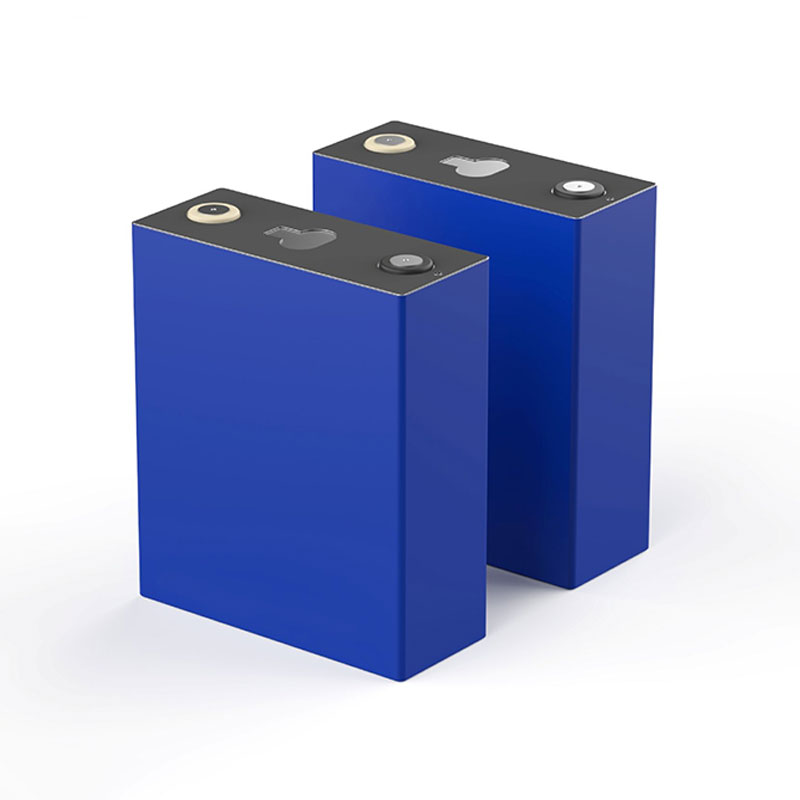

CATL New 6000 Cycling Battery Cell- 100Ah/228Ah/280Ah/302Ah

CATL-battery-cell-datasheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

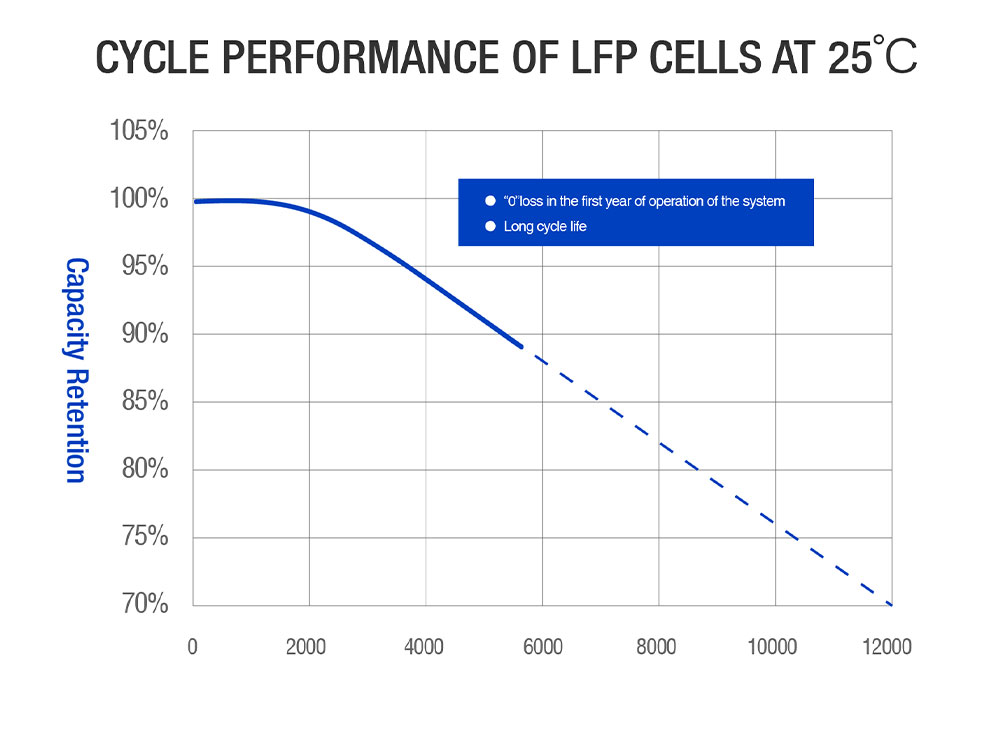

CATL's unique leading technology enables "0" capacity fading to the system in the first year and 25-year long service life.

Form：

Cell Type	26Ah	100Ah			228Ah	280Ah	302Ah

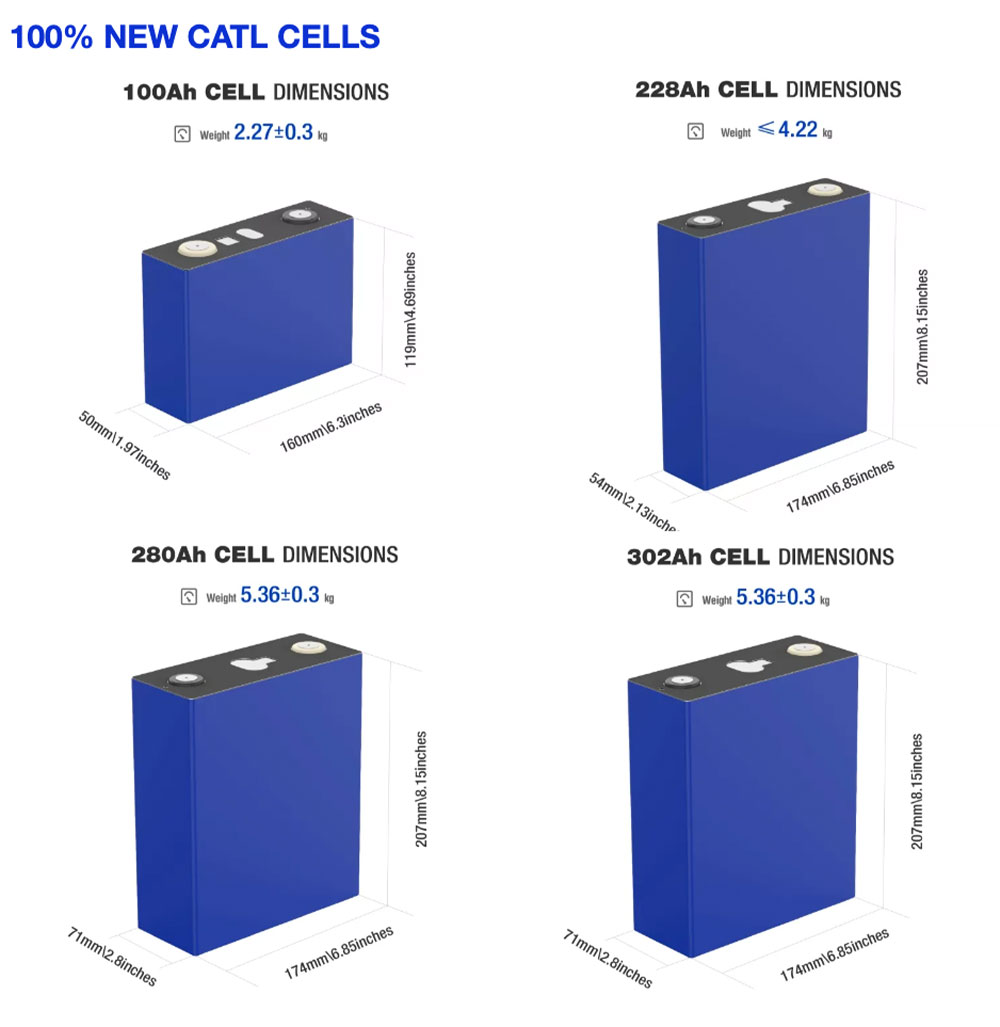

Dimensions	Φ47*152mm	12323360mm	20033172mm	16050119mm	17454207mm	17471207mm	17471207mm
Capacity	26Ah	100Ah	100Ah	100Ah	228Ah	280Ah	302Ah
Rated Voltage	3.22V	3.2V	3.2V	3.2V	3.22V	3.2V	3.22V
Rated Energy	83.7Wh	320Wh	320Wh	320Wh	734.1Wh	896Wh	972.44Wh
Weight	≤0.55kg	≤1.85kg	2.27±0.3kg	1.95±0.15kg	≤4.22kg	5.36±0.3kg	≤5.51kg
Charge & Discharge Rate	≤1C	≤1C	≤1C	≤1C	≤1C	≤1C	0.5C
Cycle Life	6000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL	6000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL	6000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL	6000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL	4000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL	6000 cycles@25°C 0.5P/0.5P 100%DOD 70%EOL	4000 cycles@25°C 0.5C/0.5C 100%DOD 70%EOL
