32/35kWh Electric Coach Liquid-cooling Battery Box
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description

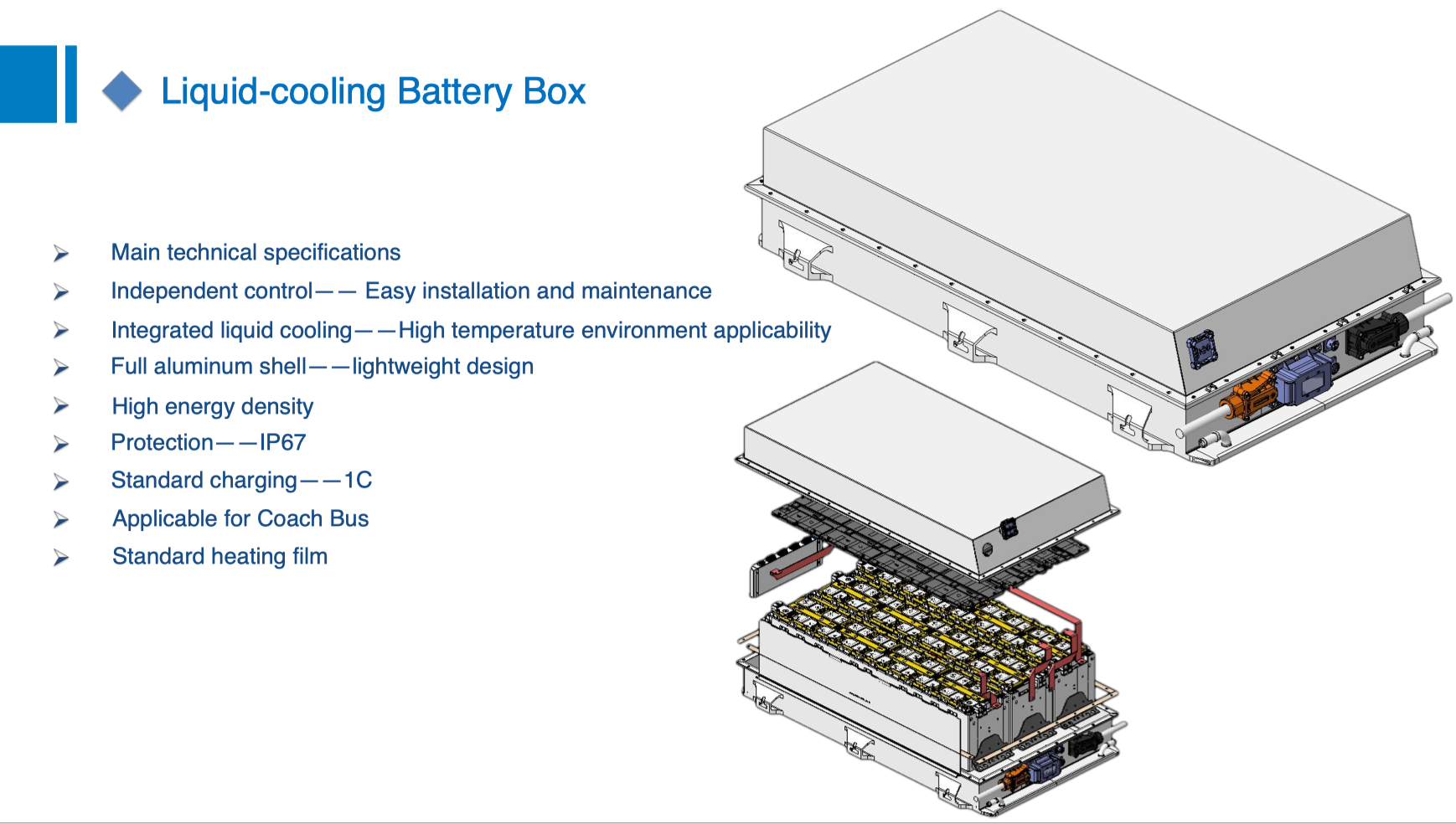

Main technical specifications：
Independent control—— Easy installation and maintenance;
Integrated liquid cooling——High temperature environment applicability;
Full aluminum shell——lightweight design;
High energy density;
Protection——IP67;
Standard charging——1C;
Standard heating film;
Applicable for Coach.
Form：
|
Item |
C box |
C box |
C box |
C box |
|
Cell model |
105AH |
173AH |
230AH |
280AH |
|
Configuration |
2P48S |
1P63S |
1P48S |
1P36S |
|
Rated voltage |
153.6V |
202.86V |
153.6V |
115.2V |
|
System energy |
32.256kwh |
35.095kWh |
35.328kWh |
32.256kWh |
|
System capacity |
210Ah |
173Ah |
230Ah |
280Ah |
|
Size(mm) |
1060*630*240 |
|||
