384V 105AH 40.32kWh EV Lithium Battery Pack
1. Customized plywood case and foam packaging, safe for different shipment
2. 100% full testing before shipment to ensure quality
3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
4. Customs on-site inspection to ensure the safety of the battery
Form：
|
Input item |
Specific parameters |
Remark |
|
Rated electricity (kWh) |
40.32 |
1 battery box |
|
Rated voltage (VDC) |
384 |
|
|
Battery Material System Requirements |
Lithium iron phosphate |
|
|
Maximum continuous discharge current (A) |
100 |
0.95C |
|
Peak discharge current (A) |
195 |
1.86C |
|
Maximum continuous charging current (A) |
100 |
0.95C |
|
Cooling method requirements (air cooling, liquid cooling, natural cooling...) |
natural cooling |
|
|
Charging Low Temperature Requirements |
greater than 0 degrees |
|
|
Heating requirements |
Low temperature charge heating |
|
|
Degree of protection |
IP67 |
|
|
Working environment temperature (°C) |
-20~55 |
|
|

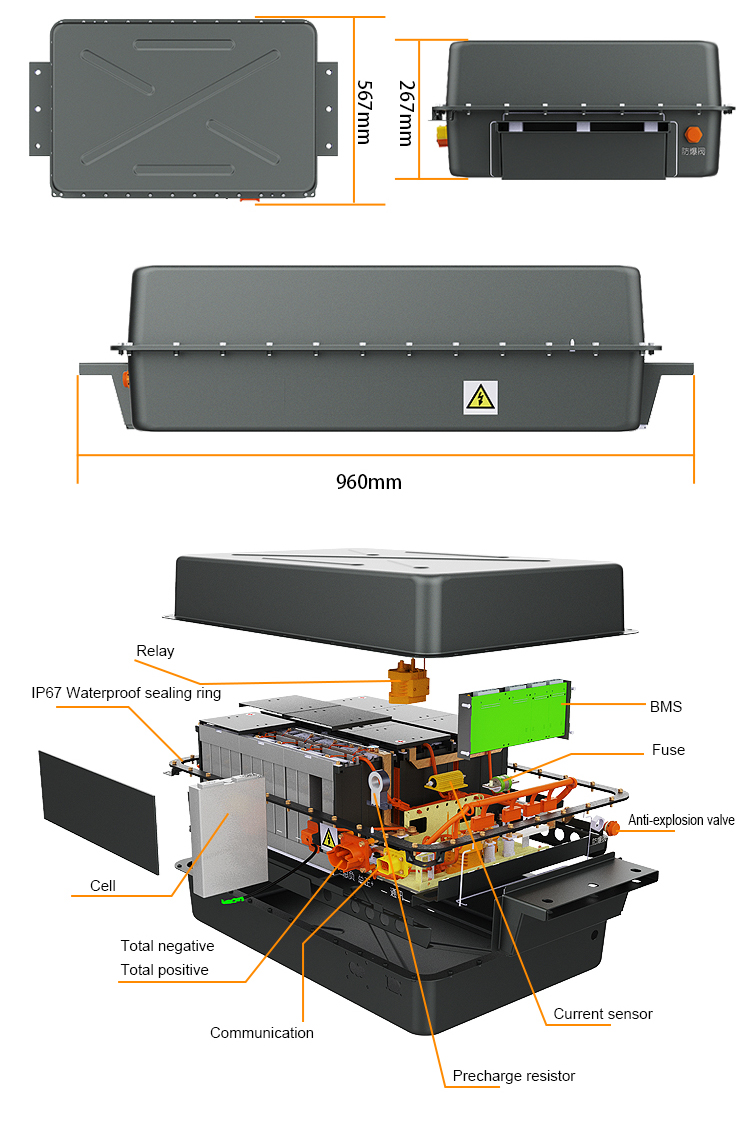

Maximum Dimensions (L*W*H) (mm) |
1000*500*500 |
|
|
Rated information |
384V100AH120S |
|
|
Rated energy |
40.32KWH |
|
|
Voltage range |
300VDC~438VDC |
|
|
System weight |
~350kg |
|
|
Continuous charging current |
100A/0.95C |
|
|
Continuous discharge current |
100A/0.95C |
|
|
Instantaneous discharge current |
195A/1.86C |
|
