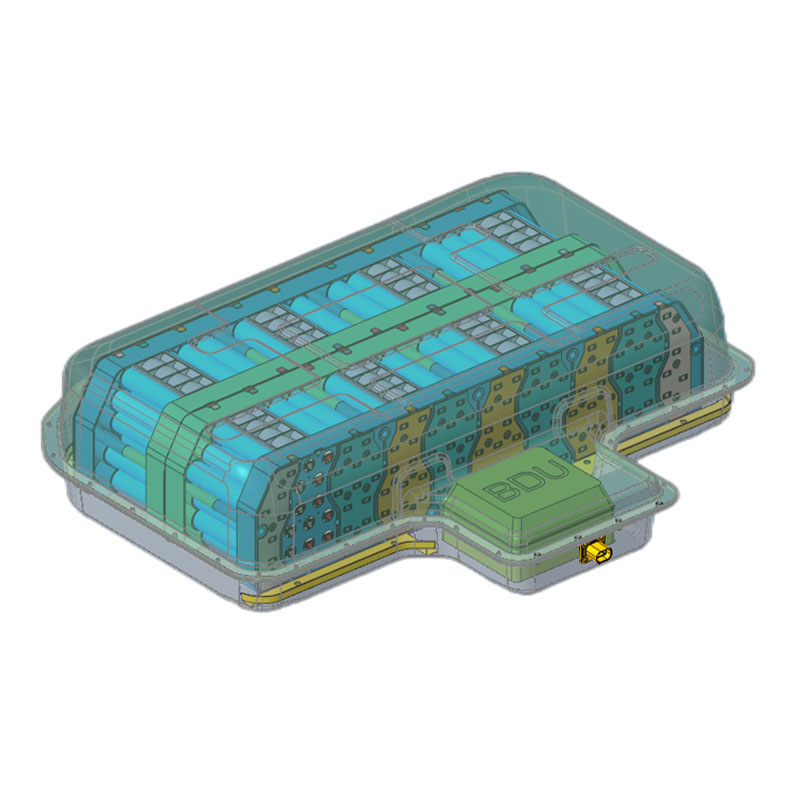

7/18/40kWh Passenger Vehicle Battery System
Passager vehicle power battery—high voltage, low voltage or customized.
Form：
|
Model: 40KWH |
Parameters |
Comments |
|
Cell module |
LFP 34200 |
CATL cylindrical cell |
|
Module |
5P25S*3/5P20S*1/5P15S*1 |
System: 5 packs |
|
Capacity |
32.256KWH |
|
|
Rated voltage |
352V |
|
|
Continuous discharging current |
115A |
25℃ |
|
Energy density |
135WH/KG |
|
|
Voltage |
275~401.5V |
Unit: 2.5V~3.65V |
|
Cooling mode |
Self-cooling |
|
|
Heating |
-20℃ to 5 ℃(1.6H) |
15℃/H |
|
PACK |
1355*1381*153 |
Non-standard Box |
|
|
|
|
|
Model: 7KWH |
Parameters |
Comments |
|
Cell module |
LFP 34200 |
CATL cylindrical cell |
|
Module |
3P16S*2 |
System: 2 Modules |
|
Capacity |
7KWH |
|
|
Rated voltage |
102.4V |
|
|
Continuous discharging current |
69A |
25℃ |
|
Energy density |
102.4WH/KG |
|
|
Voltage |
80~116.8V |
Unit: 2.5V~3.65V |
|
Cooling mode |
Self-cooling |
|
|
Heating |
-20 ℃ to 5℃(1.4H) |
18℃/H |
|
PACK |
860*630*146.5mm |
Non-standard Box |
|
|
|
|
|
Model: 18KWH |
Parameters |
Comments |
|
Cell module |
LEP 34200 |
|
|
Module |
7P18S*2 |
7P36S |
|
Capacity |
161Ah |
18.54kWh |
|
Rated voltage |
115.2V |
|
|
Continuous discharging current |
161Ah |
25℃ |
|
Energy density |
>105WH/KG |
|
|
Voltage |
115.2V |
|
|
Cooling mode |
Self-cooling |
|
|
Heating |
-20℃to 5℃(1.4H) |
18℃/H |
|
PACK |
932*1138*256 |
Non-standard Box |
