100-400kWh Air Cooling Commercial ESS
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description

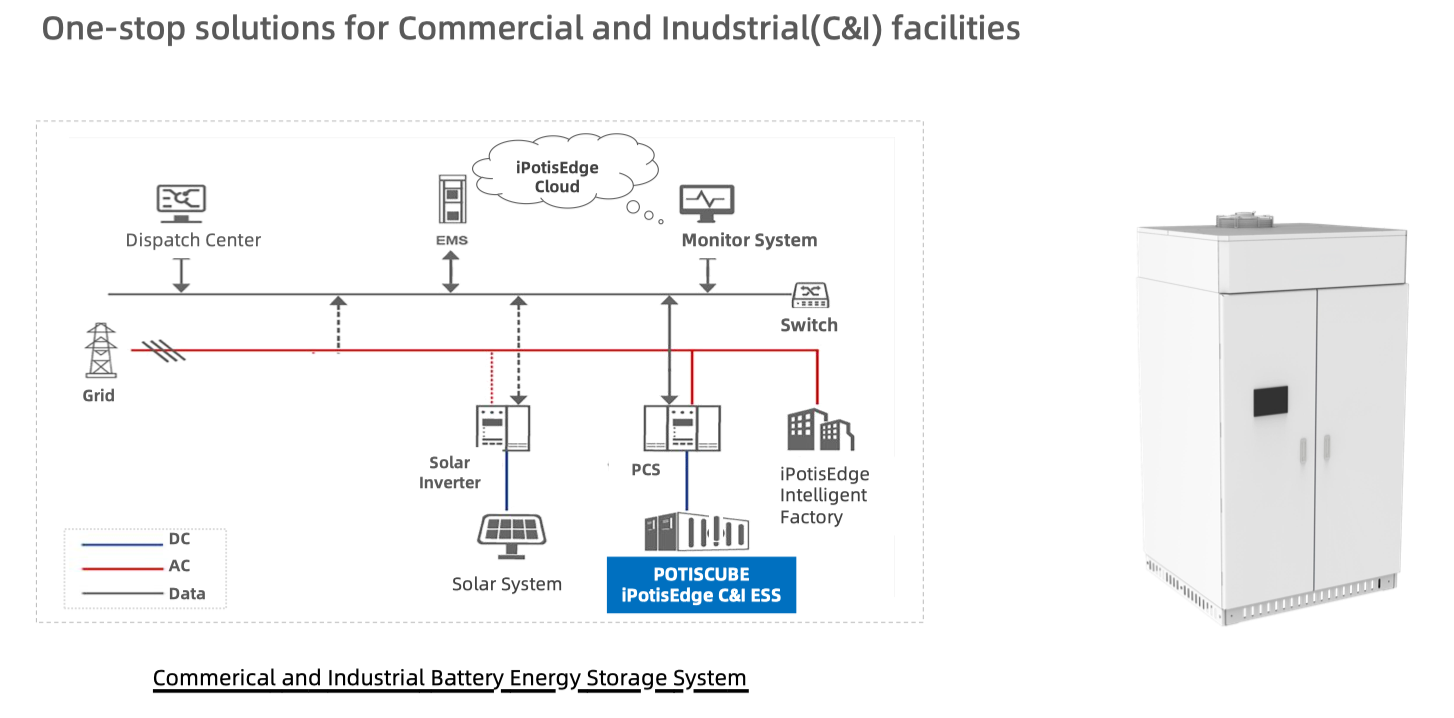

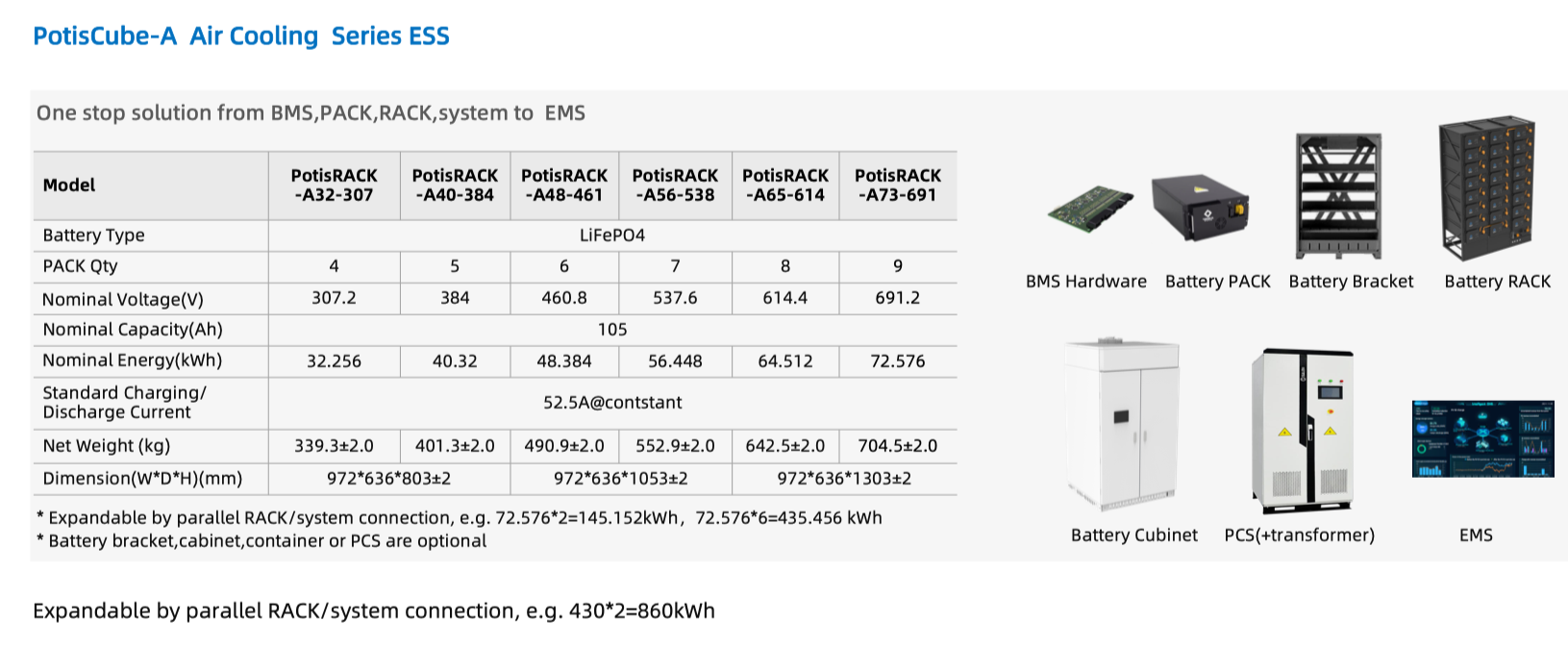

One stop solution from BMS, Pack, Rack, System to EMS.
Expandable by parallel RACK/system connection, e.g. 72.576*2=145.152kWh, 72.576*6=435.456 kWh.
Battery bracket, cabinet, container or PCS are optional.
Form：
|
Model |
PotisRACK - A32-307 |
PotisRACK - A40-384 |
PotisRACK - A48-461 |
PotisRACK - A56-538 |
PotisRACK - A65-614 |
PotisRACK - A73-691 |
|
Battery Type |
LiFePO4 |
|||||
|
PACK Qty |
4 |
5 |
6 |
7 |
8 |
9 |
|
Nominal Voltage(V) |
307.2 |
384 |
460.8 |
537.6 |
614.4 |
691.2 |
|
Nominal Capacity(Ah) |
105 |
|||||
|
Nominal Energy(kWh) |
32.256 |
40.32 |
48.384 |
56.448 |
64.512 |
72.576 |
|
Standard Charging/ Discharge Current |
52.5A@contstant |
|||||
|
Net Weight (kg) |
339.3±2.0 |
401.3±2.0 |
490.9±2.0 |
552.9±2.0 |
642.5±2.0 |
704.5±2.0 |
|
Dimension(W*D*H)(mm) |
972*636*803±2 |
972*636*1053±2 |
972*636*1303±2 |
|||
