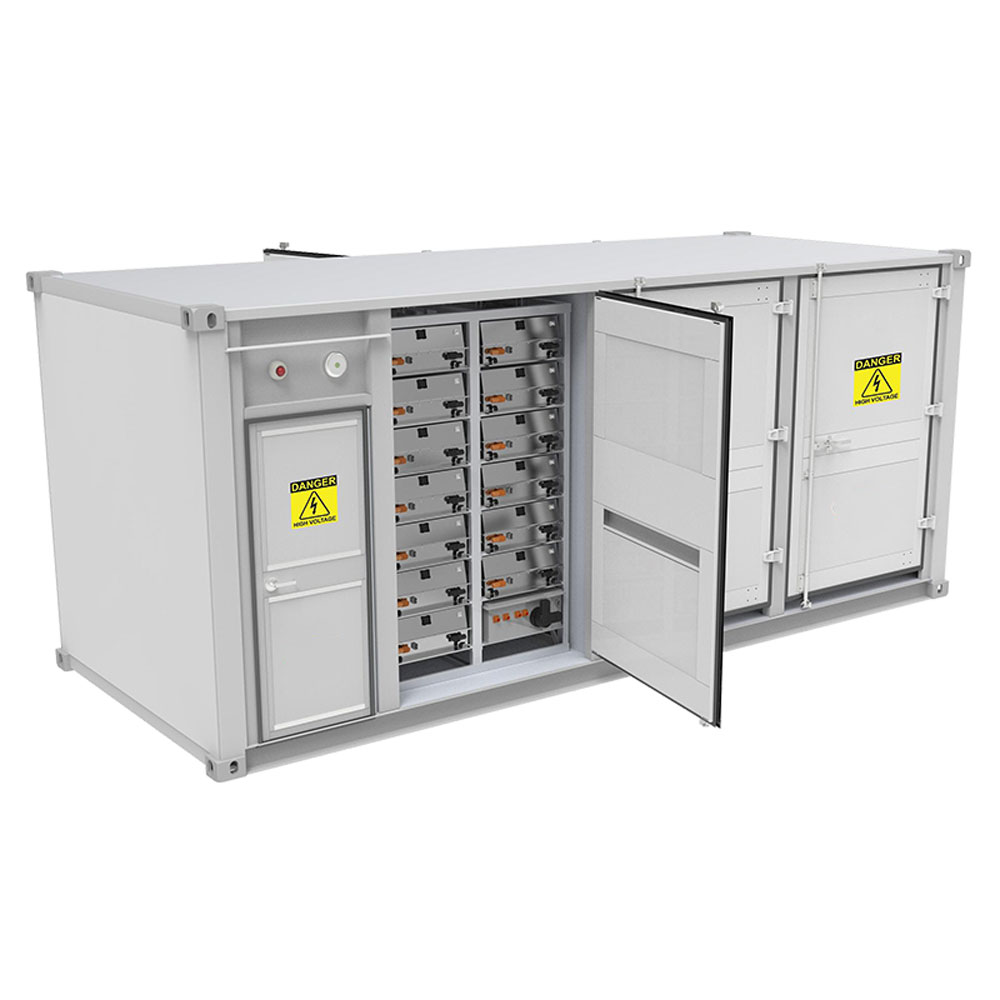

2-4MWh Liquid Cooling 1500V Container ESS

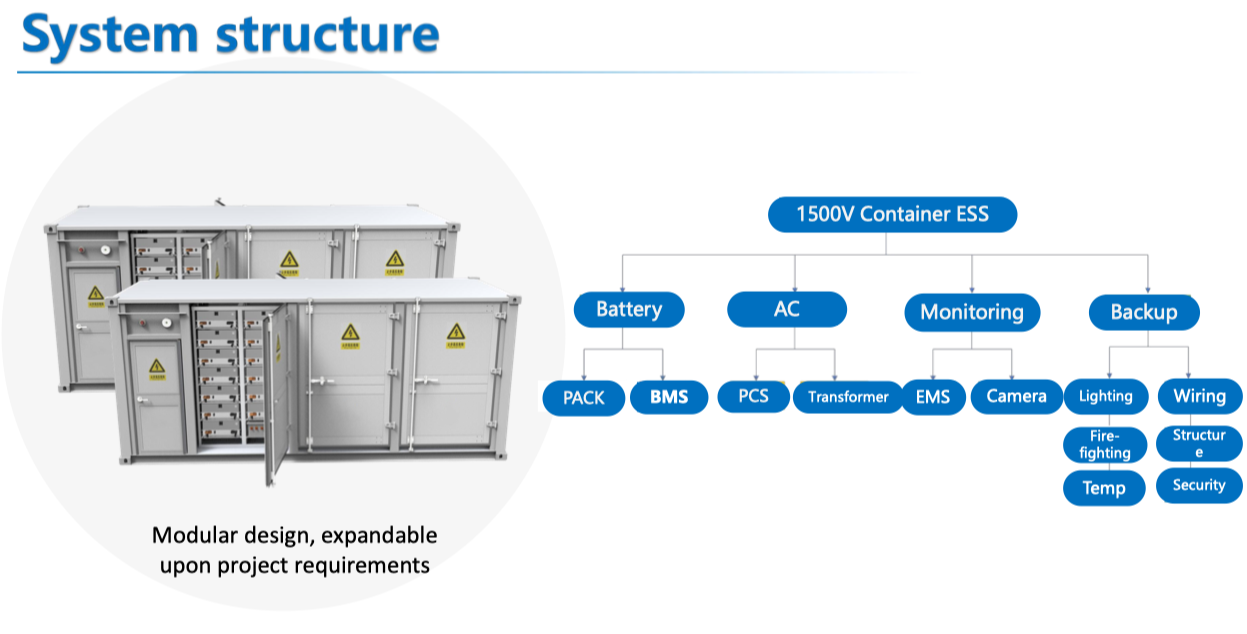

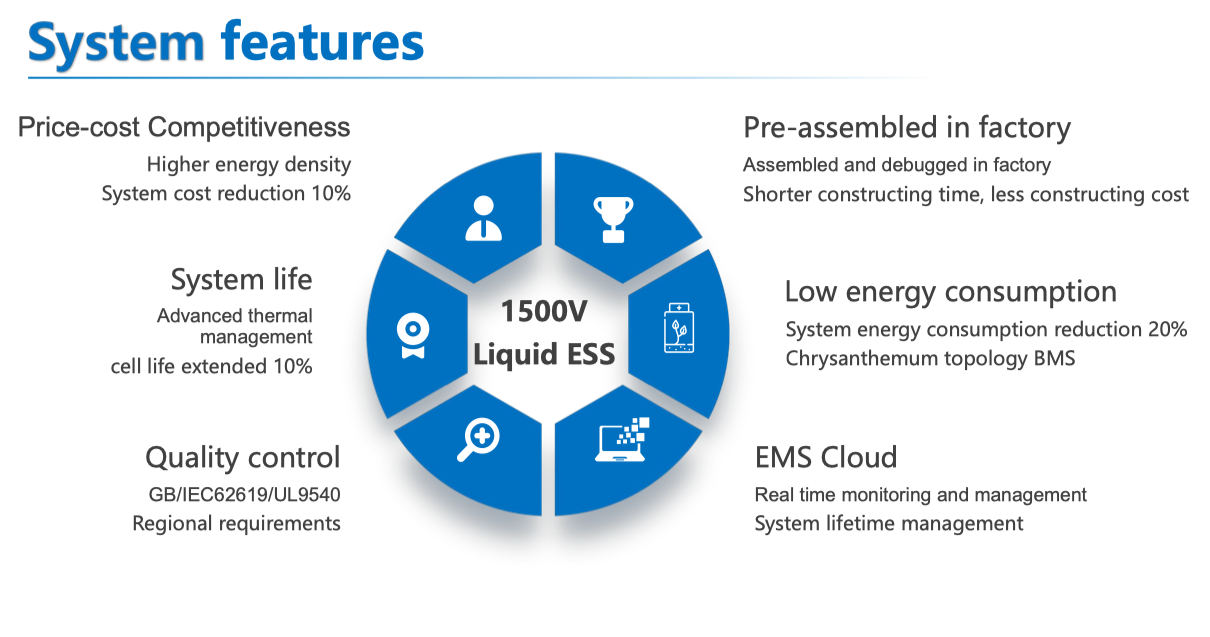

Standard and modular 20ft container design, integrated structure, easy for shipping and installation.
Quality LFP battery, proven safety and certified performance.
Long life span of more than 10 years.
Advanced anti-thermal-runaway design.

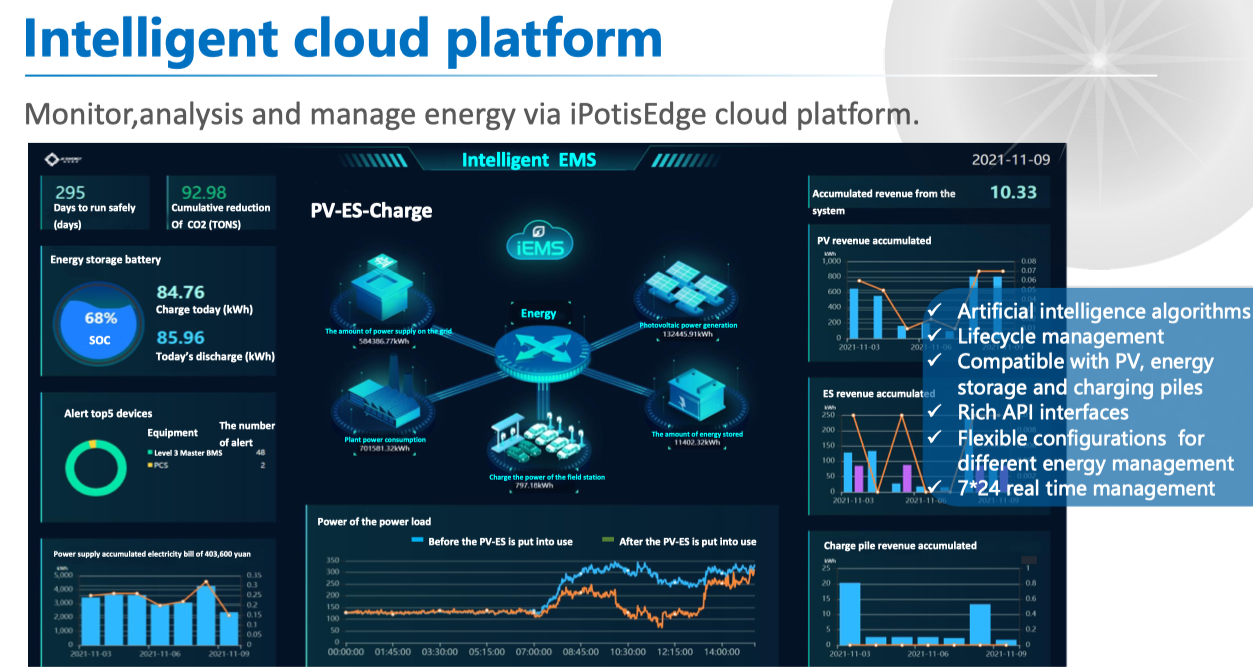

Intelligent BMS, EMS and cloud management.
Reinforced fire control system.
Standards and Certificate: GB/T36276, IEC62619, UL1973, UL9540, UL9540A.

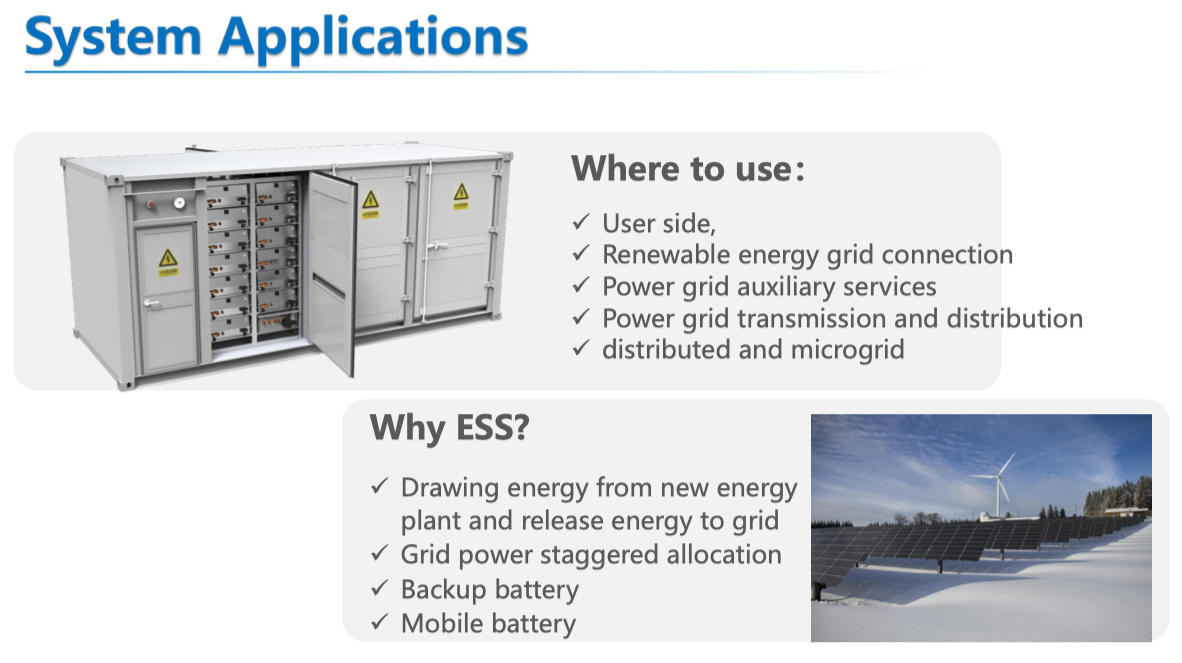

Applied to user side, renewable energy grid connection, power grid auxiliary services, power grid transmission and distribution.
Form：
|
Capacity |
2.1MWh |
|
Specifications |
1248V280AH*6P |
|
Voltage range |
975V～1423.5V |
|
Recommended discharging current |
140A*6P |
|
Max discharging current |
280A*6P |
|
Working temp |
-20℃~55℃ |
|
Designed life |
＞10 years |
|
Cycles |
6000 times（@25℃） |
|
Weight |
About 21 ton |
|
Ingress Protection |
IP55 |
|
Size |
6058mm*2438mm*2519mm |
|
Battery cluster |
1P390S |
|
Communication |
CAN/485/Ethernet |
|

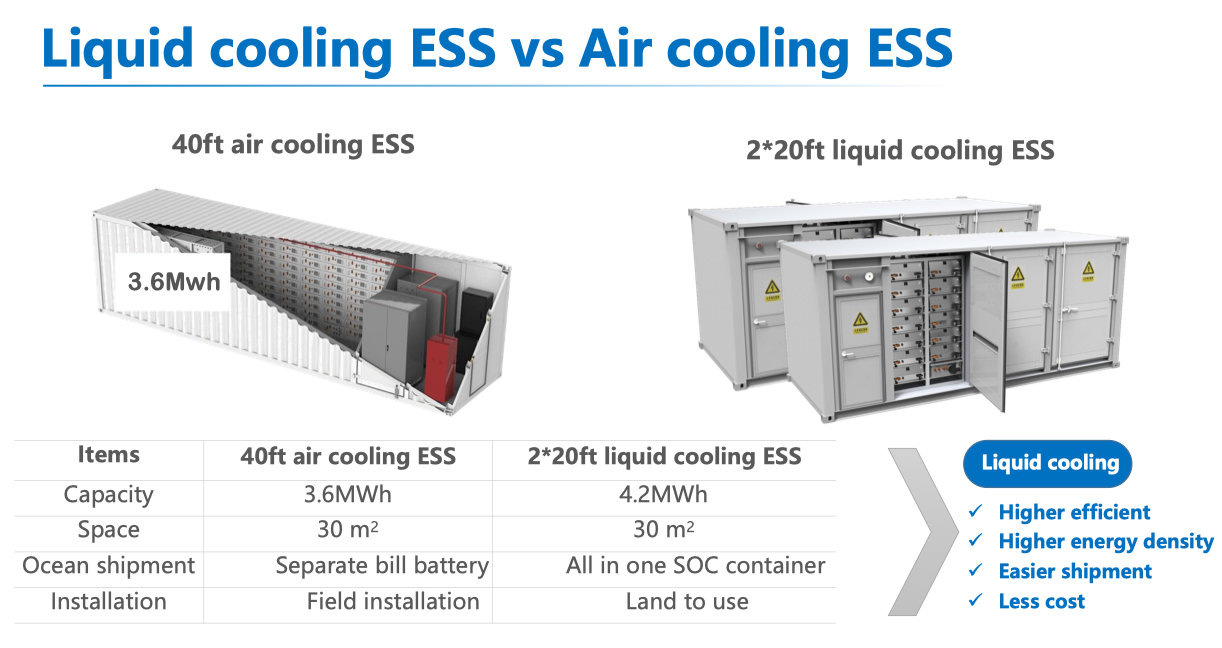

Cooling |
Liquid |
|
DC Conversion Efficiency |
94% |
|
Standards |
GB/T36276,IEC62619,UL1973, UL9540,UL9540A,UN38.3 |
