215kWh 430kWh Liquid Cooling Commercial ESS
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description

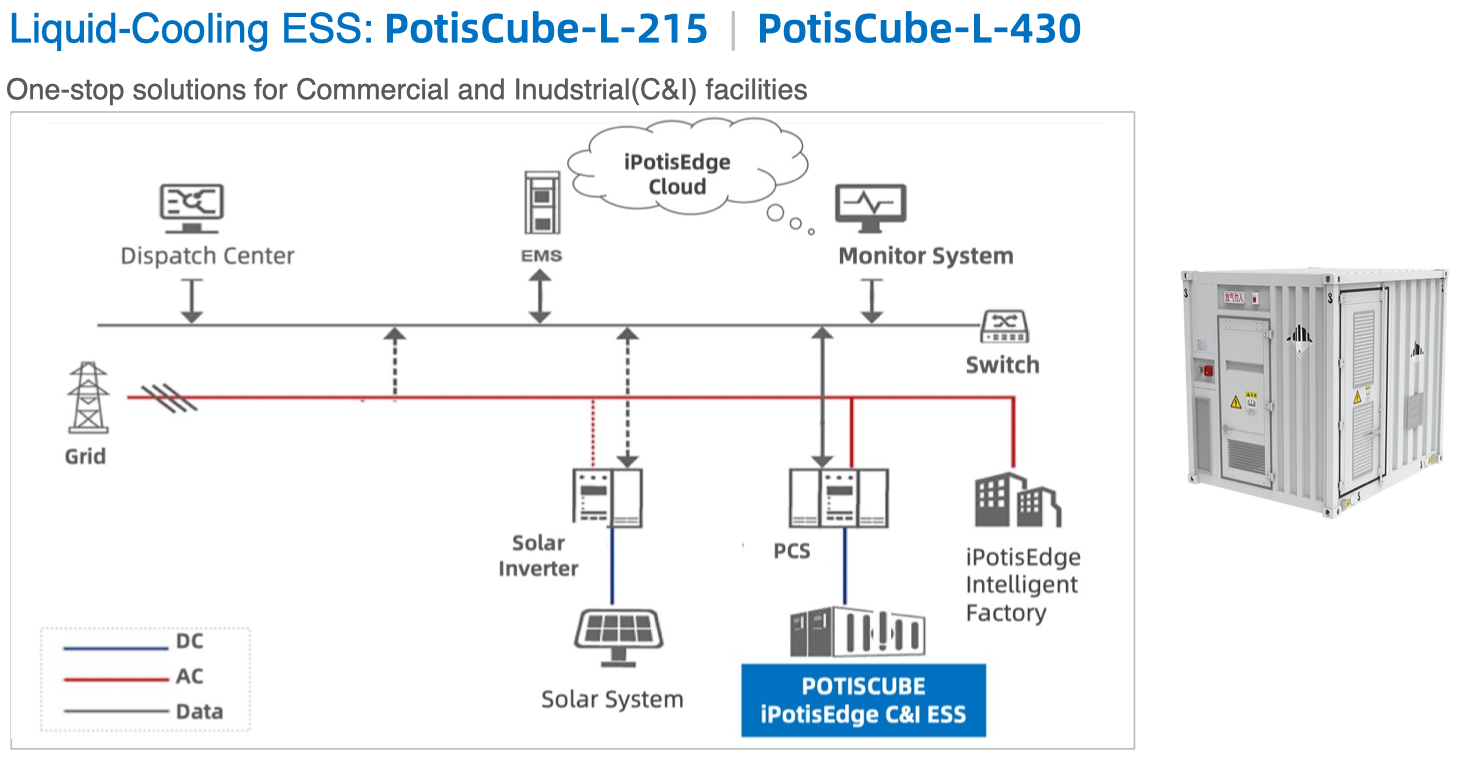

Storage, PCS and transformer are integrated in a 10ft container.
Expandable by parallel RACK/system connection, e.g. 430*2=860kWh.
Form：
|
Item |
PotisCube-L-215 |
PotisCube-L-430 |
|
Configuration |
1P240S |
2P240S |
|
Nominal capacity |
215kWh |
430kWh |
|
Voltage range |
648 V～ 876 V |
|
|
Charge/discharge ratio |
0.5P |
|
|
Ingress Protection |
IP55 |
|
|
Container type |
10ft(~half of 20ft container) |
|
|
Design standards |
GB/T 36276-2018, UL1973, UL9540, UL9540A, UN38.3, IEC62619，NFPA69, NFPA70, NFPA855,NFPA68 |
|
|
Environment temperature |
-20℃ to 55℃(-4°to 131°F) |
|
|
Thermal management |
Liquid cooling |
|
|
Size(L*W*H)mm |
2991*2438*2896 |
|
|
Weight(Ton) |
5.8 |
7.5 |
