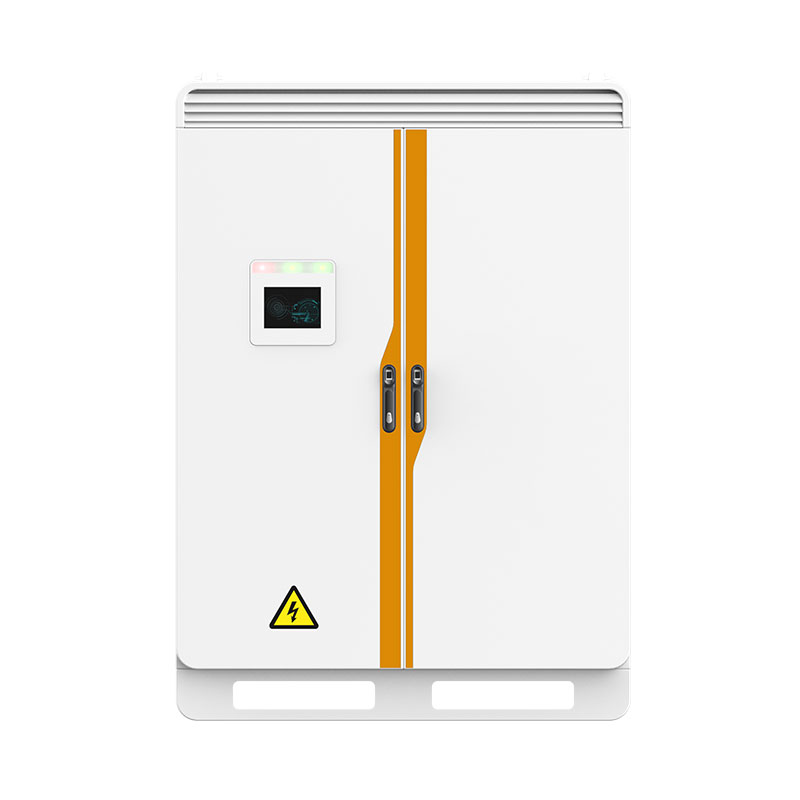

60/126kWh Air Cooling Outdoor ESS Cabinet
The peak-valley power price difference is getting bigger due to increasing demands for electricity. The industrial & commercial ESS can reduce the impact of electricity shortage in the peak hours to the local industries, as well as, the society.
Form：
|
Model |
iESS-CAB-W126H |
|
Battery Specifications |
|
|
Battery Type |
LFP |
|
Battery Capacity |
150Ah |
|
Battery Cell Combination |
1P264S |
|
Rated Capacity |
126kwh |
|
Rated DC Voltage |
845V |
|
DC Voltage Range |
DC660 ~ 963.6V |
|
Charge/Discharge Rate |
Rated 0.5C |
|
DOD |
90% |
|
Battery Cooling |
Air cooling |
|
AC Specifications |
|
|
AC Rated Power |
60kW |
|
AC Maximum Power |
66kw |
|
THDi |
<3% at rated power |
|
DC Component |
<0.5% rated output current |
|
AC Rated Voltage |
400V AC |
|
Allow able Grid Voltage Range |
320V~ 460V |
|
System Wiring |
3P+N+PE |
|
Rated Grid Frequency |
50/60Hz |
|
Power Factor |
0.98(leading)~0.98(lagging) |
|
Off-Grid Operation |
Yes |
|
System Specifications |
|
|
Dimensions(W*D*H) |
1600x1200x2250mm |
|
Weight |
2.0t |
|
Ingress Pretection |
IP55 |
|
Corrosion Resistant Grade |
C5 |
|
Operation Temperature Range |
-30°C~60°C |
|
Storage Temperature Range |
-20°C~60°C |
|
Relative Humidity |
≤100% |
|
Battery Temperature Control |
Industrial temperature controlled air conditioner |
|
Fire Fighting Equipment |
Aerosol (optional with heptafluoropropane) |
|
Altitude |
De-rated >3000m |
|
PCS Cooling |
Temperature controlled air forced cooling |
|
Communication Protocol |
Standard: Modbus /104 /4G |
|
Communication Interface |
RS485, RJ45 |
|
Model |
BESS-CAB-W126H |
|
Battery Specifications |
|
|
Battery Type |
LFP |
|
Battery Capacity |
3.2V/150Ah |
|
Battery Cell Combination |
1P264S |
|
Rated Capacity |
126kWh |
|
Rated wltage of electric cell |
3.2V |
|
Rated DC voltage |
DC844.8V |
|
DC Voltage Range |
DC660~963.6V |
|
Charge/Discharge Rate |
≤0.5°C |
|
DOD |
90% |
|
Battery Cooling |
FAN Cooling |
|
System Specifications |
|
|
Dimensions (WxDxH) |
1600x1200x2250 |
|
Weight |
2.0t |
|
Ingress Pretection |
IP55 |
|
Corrosion Resistant Grade |
C5 |
|
Installation location |
Outdoor installation |
|
Operation Temperature Range |
-30°C~60°C |
|
Storage Temperature Range |
-20°C~60°C |
|
Relative Humidity |
≤100% |
|
Altitude |
≤2000m |
|
Battery Temperature Control |
Industrial temperature controlled air conditioner |
|
Fire Fighting Equipmen |
Aerosol (optional with heptafluoropropane) |
|
Communication Protocol |
CAN/MODBUS |
|
Communication Interface |
CAN2.0, RS485 |
