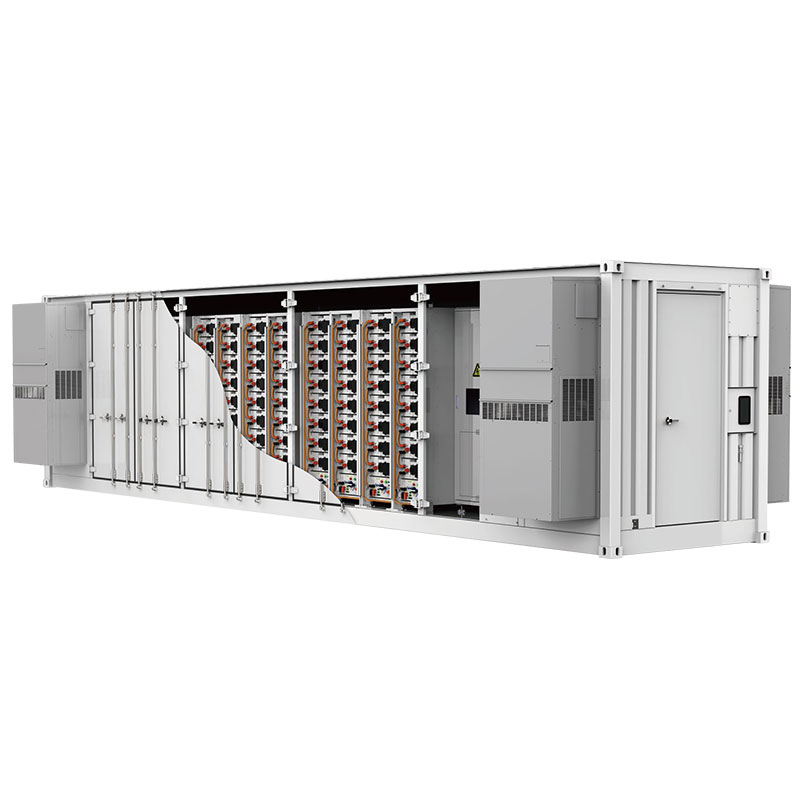

2-3Mwh Liquid-Cooling C&I Containerized ESS

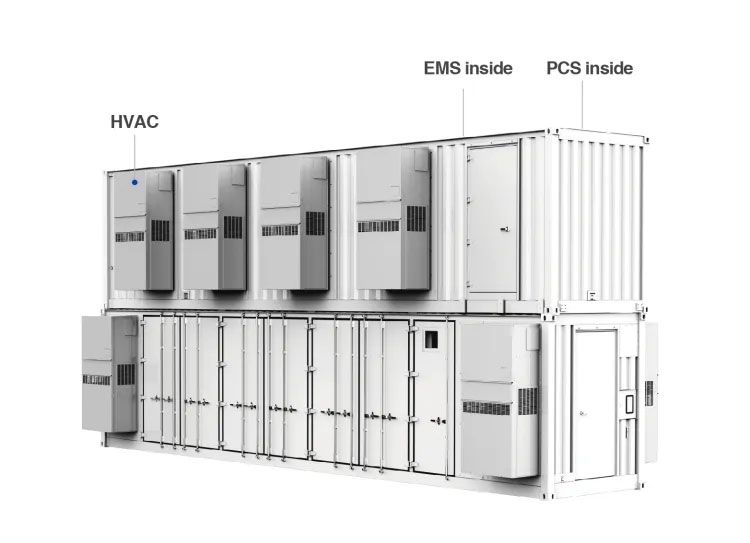

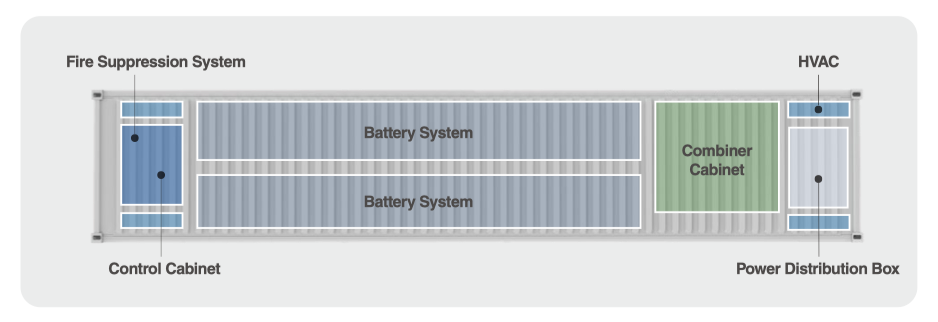

Powermax is an integrated storage system developed to meet the needs of large-scale C&I storage market. It has integrated battery cabinets, BMS, monitoring system, specific fire suppression system, HVAC, PCS and EMS. Powermax is applicable to supporting at power generation side, large industrial parks, islands, schools, scientific research institutions, large data centers, etc.
Form：
|
Powermax- M3655kwh |
|||
|
Item |
Module |
Battery Cluster |
Battery container |
|
Configuration |
1P20S |
1P340S |
12 battery cluster + combiner + control |
|
Rated Voltage |
64V |
1088V |
1088V |
|
Rated Capacity |
280Ah |
280Ah |
3360Ah |
|
Rated Energy |
17.92kWn |
304.64kWh |
3655kWh |
|
Voltage Range |
56~72V |
952-1224V |
952~1224V |
|
Protection Rating |
IP20 |
IP20 |
IP54/ NEMA3R |
|
Weight |
140kg |
2700kg |
42t |
|
Dmensiors(W*D*H) |
516*950*234mm |
1200*1039*2300mm |
12192*2438*2896mm |
|
Cycle Life |
≥6000 cycles |
≥6000 cycles |
≥6000 cycles |
|
|
|
|
|
|
Powermax- M2752kwh |
|
||
|
Working Condition |
0.25P |
0.5P |
|
|
ESS' Max. Pover |
625kW |
1280kW |
|
|
ESS' Rated Energy |
2752kWh |
2752kwn |
|
|
ESS' Usable Energy |
2600kWh |
2560kWh |
|
|
Max Short Crouit Curent |
65kA |
70kA |
|
|
Charge & Dlischarge Rating |
0.25P/0.25P |
0.5P/0.5P |
|
|
Series & Paralel Conliguration |
8*1P384S |
|
|
|
Number of Betery Packs |
48 |
|
|
|
Rated Capacity |
2240Ah |
|
|
|
System's Nominal Voltage |
1228.8V |
|
|
|
Protection Rating |
IP55/NEMA 3R |
|
|
|
Dimenslons(W*D*H) |
9250*1750*2630mm |
|
|
