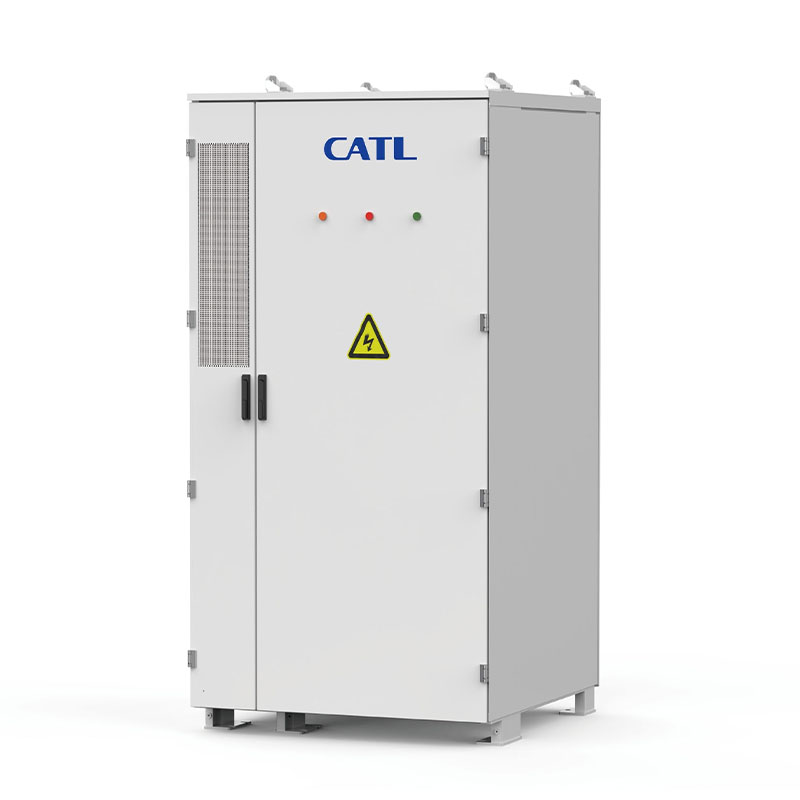

372kWh Liquid-Cooling Energy Storage System

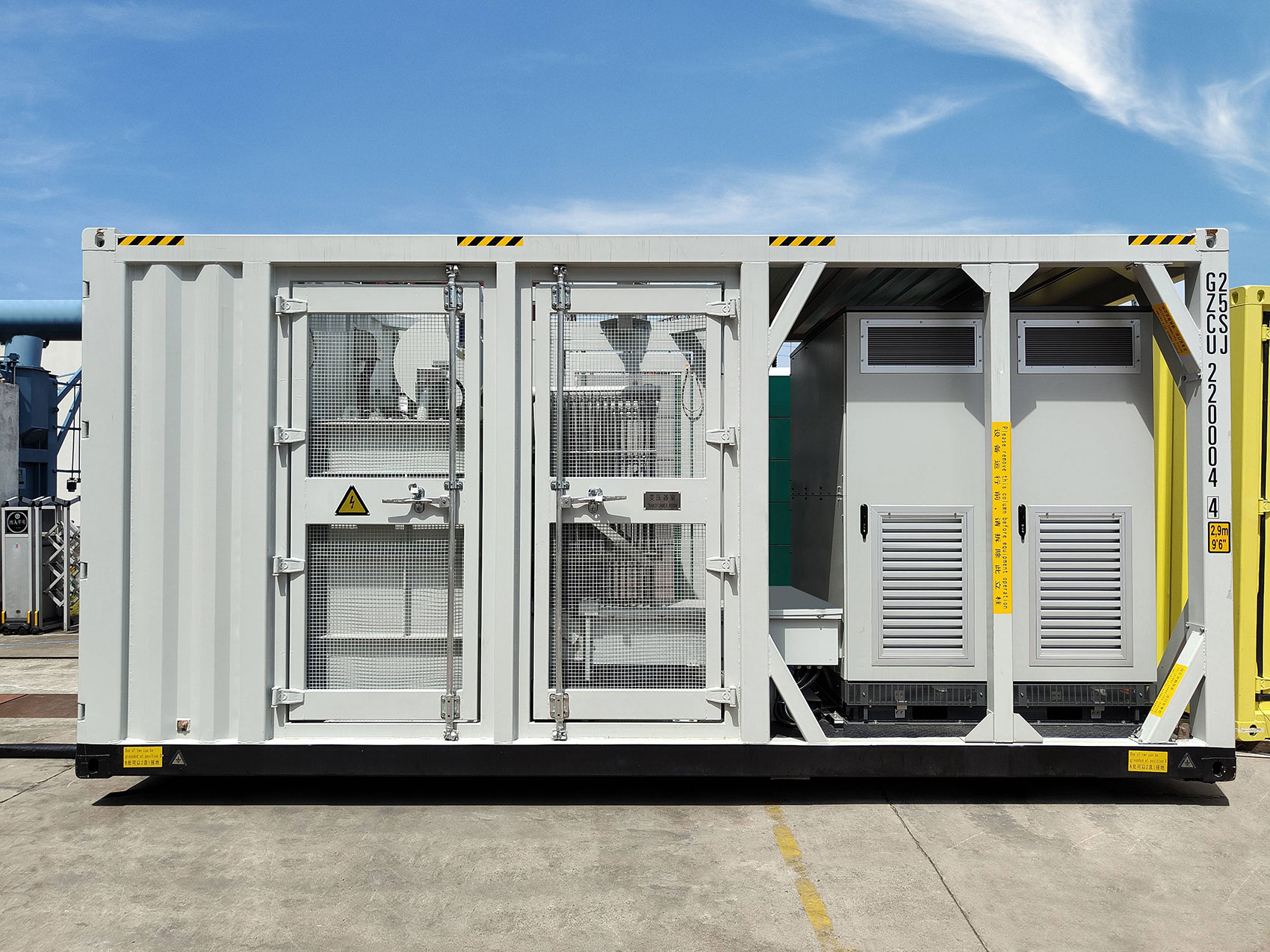

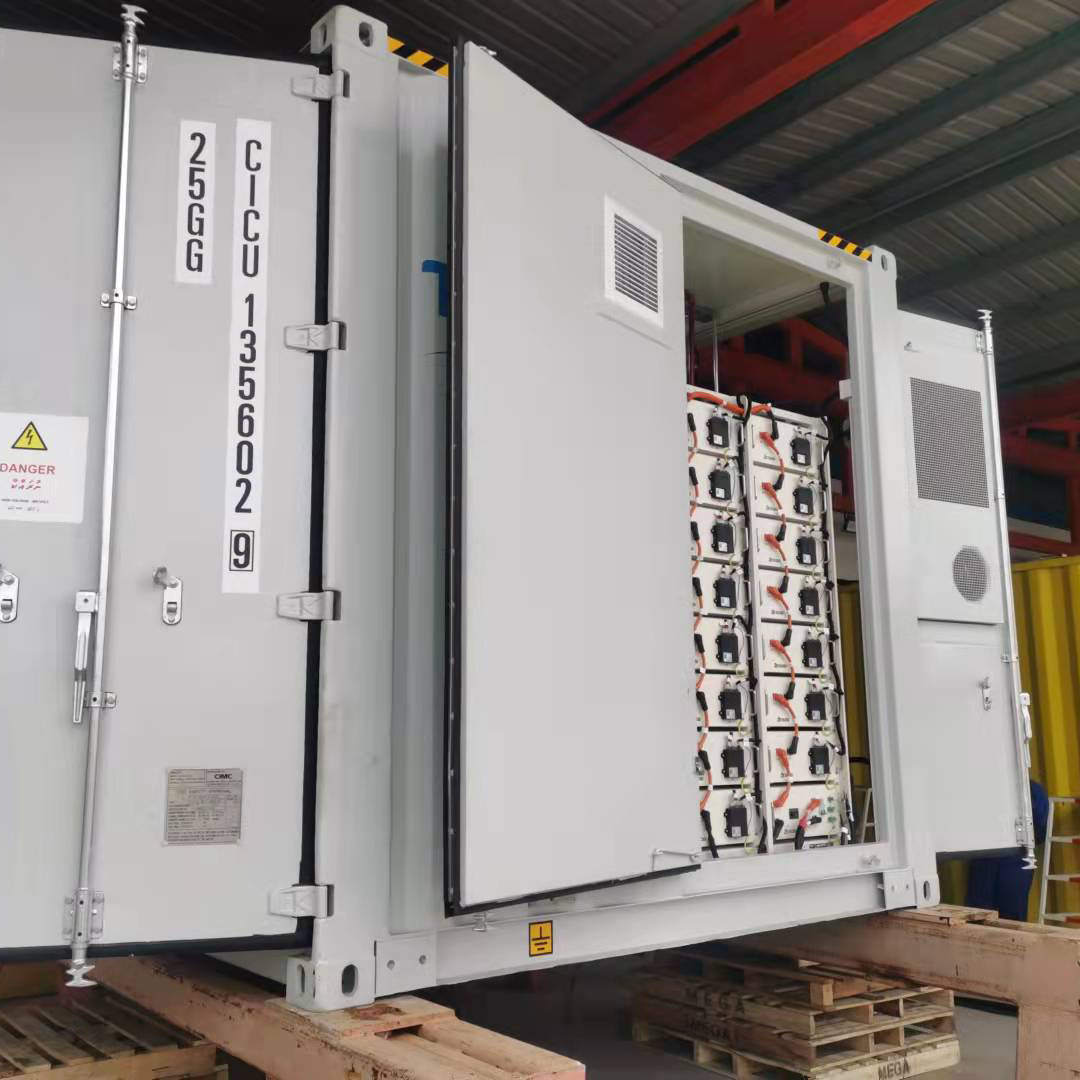

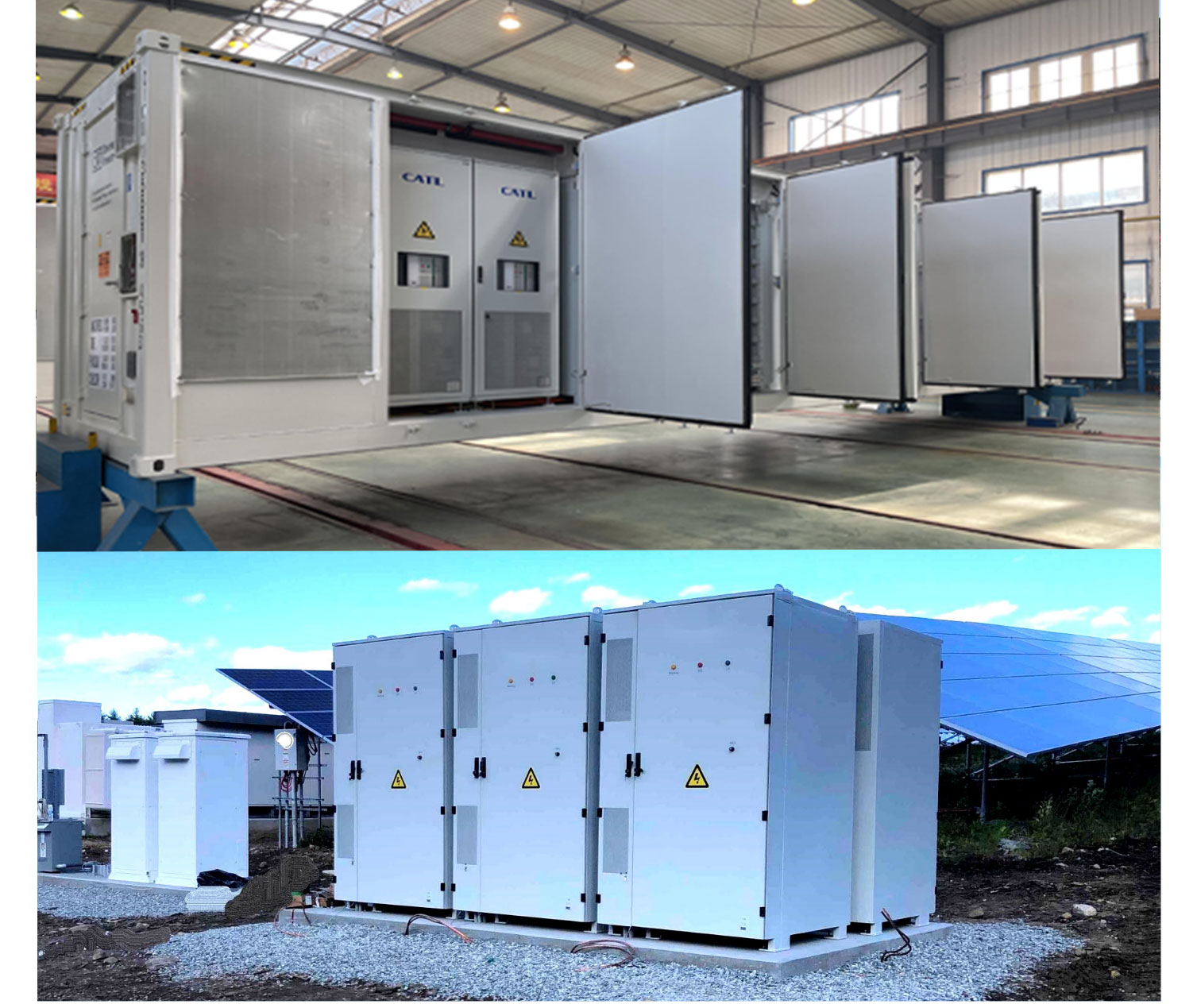

Relex's containerized battery energy storage solution is a complete, self-contained battery solution for utility-scale energy storage. It puts batteries, A/C, UPS, inverter and auxiliary equipment in a single container or separated based upon site conditions.
We provide customers with industry leading battery CATL cells and robust structural design, a dedicated Pre-sales Technical Solution team that will work out the most fit solutions upon users' demand and actual conditions.
Form：
|
Item |
Cell |
Battery rack |
Cabinet |
|
Arrangement |
/ |
1P52S |
8 boxes + 1 combiner |
|
Norminal voltage |
3.2V |
166.4V |
1331.2V |
|
Voltage range |
2.8V~3.6V |
145.6V~187.2V |
1164.8V~1497.6V |
|
Norminal power |
896Wh(@25℃, 0.5C/0.5C) |
46.59kWh(@25℃, 0.5C/0.5C) |
372.7kWh (@25℃, 0.5C/0.5C) |
|
Nominal current |
140A |
/ |
/ |
|
Continuous max. current |
280A |
280A |
280A |
|
Working temperature |
Charge: 0℃~55℃ |
Charge: 0℃~55℃ |
|
|
Discharge: -20℃~55℃ |
Discharge: -20℃~55℃ |
||
|
Weight |
~5.34kg |
~330kg |
~3500kg |
|
Dimensions |
174*72*207mm |
810mm*1152mm*243mm |
1300mm *1300mm * 2280mm |
